Improve Battery Terminal Reliability with Specialty Grease
Battery terminals are often found in automotive and power tool applications where environmental factors can impact electrical reliability. If not protected, salt and dirt can corrode battery terminals; causing either an open connection or a short between positive and negative terminals. Moisture intrusion can have a more immediate effect and cause an instantaneous short circuit as well. Grease protects your battery terminals against moisture and corrosion to prevent electrical failures.
When a contact corrodes, insulative oxides form on the terminal surface which results in increased resistance, signal loss and component failure. The corrosion can also be conductive and builds up to a point where it bridges the distance between two terminals and creates a short circuit.
Even with specially designed housings, there is a risk that dust, dirt, or another form of debris could find its way to the contact pin. When this happens, it can interfere with conductivity and lead to a connection that is not solid. Harsh chemicals can also corrode the metal surface and eat away at the pin’s metal plating.
How Grease Helps
Magnets attract, greases don’t. Grease creates an environmental barrier to keep dirt and debris away from the contact surface. PFPE lubricants are recommended to offer protection in the presence of harsh chemicals.
A lot of moisture can cause an immediate short-circuit whereas a small amount can corrode the connector surface over time. Moisture can corrode the terminal surface over time or even cause an instantaneous short circuit. Moisture can take the form of water, detergents, humidity, or salt spray.
How Grease Helps
Connector grease repels water from the connector surface. Connector grease is hydrophobic, meaning it stays in place rather than being washed away over time. Grease also prevents current leakage in conductive environments, such as water, to ensure consistent connectivity. A connector grease can also create a seal for the connector to prevent water ingress at the housing interface.
Case Study
Commercial vehicles are operated for extensive periods of time under a variety of environmental conditions and depend on reliable components that require shortened and/or infrequent servicing. These vehicles are continuously exposed to road spray, which in the winter contains corrosive salts and chemicals. If a battery or starter terminal were to become corroded, it could cause unwanted downtime as the driver would be unable to start the vehicle or the electronics controls would fail to operate properly.
Learn how Nye helped an OEM find a lubricant with the right water spray resistance properties to extend the life of their battery, starter and alternator terminals, and ground straps to protect them from corrosion.

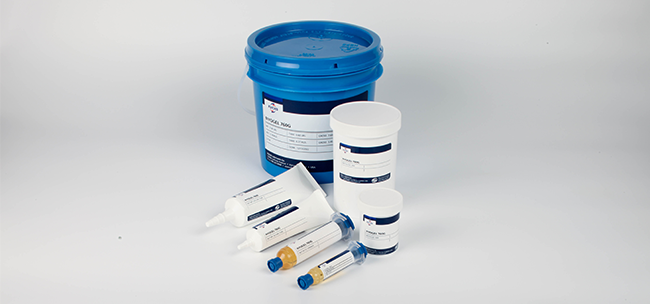

Select Your Battery Terminal Grease
Nye Lubricants, a member of the FUCHS Group, has a complete line of dielectric greases designed specifically to address application requirements for contact protection, insertion force, sealing, temperature limits and material compatibility.
Leading connector grease across several industries with specification at a wide-range of leading OEM's. Good fretting corrosion protection and dielectric isolation capabilities. Common connector material compatibility.
Similar performance as NyoGel® 760G, with a higher maximum temperature capability of 175 °C.
Formulated to offer outstanding dielectric performance, reduction of insertion force, and fretting wear protection as well.
Recommended for applications with high operating temperatures up to 225 °C. Compatible with a wide range of plastics and elastomers. Excellent insertion force reduction.
|
Properties |
||||
|
Temperature Range |
-40 to 135 °C |
-40 to 175 °C |
-40 to 175 °C |
-70 to 225 °C |
|
Base Oil |
PAO |
PAO/AN |
PAO/AN |
PFPE |
|
Fretting Wear Protection |
Good |
Good |
Excellent |
Excellent |
|
Dielectric Performance |
Good |
Good |
Excellent |
Good |
|
Insertion Force Reduction |
Excellent |
Excellent |
Good |
Excellent |
|
Water Resistance |
Excellent |
Good |
Good |
Poor |
|
Plastic Compatible |
Yes |
Yes |
Yes |
Yes |
|
Tin Compatible |
Yes |
Yes |
Yes |
Yes |
|
Noble Metal Compatible |
Yes |
Yes |
Yes |
Yes |
Learn More
We can work directly with your design engineers to form a partnership and assist with proper grease selection to ensure performance, avoid warranty claims and costly recalls. Contact an Engineer to learn more.
