Case Study: Reducing Frictional Torque for Linear Guide Rails
Application: Semiconductor Processing Equipment

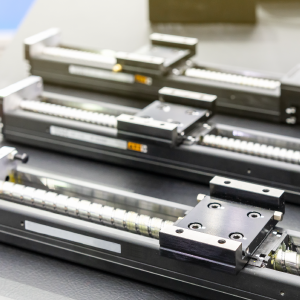

Location: Linear Guide Rail
Challenge
A company that manufactures semiconductor processing equipment approached us about lubricating the rail in a linear guide system. The company wanted to reduce wear in the sliding application. The environmental conditions were high vacuum, and typical operating temperatures ranged between 25°C - 150°C. To prevent contamination and premature failure of the system, the company required a lubricant with low outgassing, excellent friction and wear properties, and low particle generation.
- Can the lubricant reduce wear under sliding conditions?
Solution
NYETORR® 5200
A soft, PTFE thickened, medium viscosity cyclopentane grease.
- Extremely low particle generation
- Low outgassing and vapor pressure
- Reduces frictional torque on sliding surfaces
- Excellent vacuum stability
| Product | Chemistry | Temp Range (°C) | Total Mass Loss | Collected Volatile Condensable Materials | Knudsen Vapor Pressure (25°C) |
|---|---|---|---|---|---|
| NYETORR® 5200 | PTFE / Cyclopentane | -45 to 150 | 0.068 wt% | 0.007 wt% | 1.1 x 10-8 Torr "}]} |
Results
Our Applications Development and Validation Testing Lab ran Vacuum Stability, Dynamic Particle Generation, Knudsen Vapor Pressure, and Coefficient of Friction & Wear testing on several NYETORR® products. The customer decided to move forward with NYETORR® 5200 as the lubricant for this linear guide after it proved to reduce frictional torque on sliding surfaces by approximately 33%.
